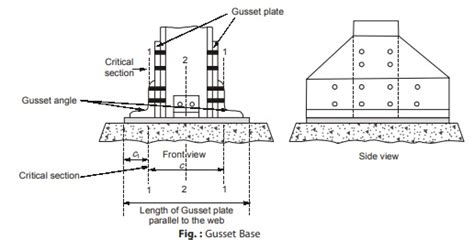

Gusseted Base Design Example . Design gusset base plate example gusset plate design truss buckling scribd. A gusseted base consists of a base of reduced thickness and two gusseted plates are attached one to each flange of the column.
RAM Connection Gusset Plate design issue RAM STAAD from communities.bentley.com
Fillet weld, a = 4 mm (see section 4). Area of slab base required. The base is pinned and the top is fixed with some lateral translation.
RAM Connection Gusset Plate design issue RAM STAAD
Select a convenient width of the base plate. Example 3.2 a single angle tension member, l 4 x 4 x 3/8 in. (i) divide the factored column load by the design bearing strength of concrete and find the area of the base plate. Use of this document is subject to the terms and conditions of the access steel licence agreement
Source: www.youtube.com
Fillet weld, a = 4 mm (see section 4). The size of the column is ishb450. Gusset plate to base plate: It is assumed uniformly distributed under the slab Convert brace load into shear and normal forces on this section.normal force will also result in a moment on the section.
Source: www.researchgate.net
Select a convenient width of the base plate. Shear transfer using bearing.40 4.9 example: There is a very extensive treatment of gusset plate design and behaviour in section 10.7.2 of the hera structural steelwork limit state design guide volume 1 (clifton, 1994). Design a base plate given that the column dead load is 100 kips and live load is 150.
Source: www.youtube.com
Make a section cut of the gusset pl @ the col face. Made from a36 steel is connected to a gusset plate with 5/8 in. Diameter bolts, as shown in figure below. Shear transfer using bearing.40 4.9 example: Use of this document is subject to the terms and conditions of the access steel licence agreement
Source: communities.bentley.com
L e = 2.0 l p critical = π 2ei min /(2l) 2 = π2ei min /4l 2 examples: Additionally, the shear strength of the base metal must also be considered: (i) divide the factored column load by the design bearing strength of concrete and find the area of the base plate. Design gusset base plate example elucom de. The.
Source: civildiploma1.blogspot.com
Diameter bolts, as shown in figure below. There is a very extensive treatment of gusset plate design and behaviour in section 10.7.2 of the hera structural steelwork limit state design guide volume 1 (clifton, 1994). Fillet weld, a = 4 mm (see section 4). A w10 x 49 column is supported by a concrete pier whose top surface is 19.
Source: communities.bentley.com
L e = 2.0 l p critical = π 2ei min /(2l) 2 = π2ei min /4l 2 examples: Use of this document is subject to the terms and conditions of the access steel licence agreement T elevation plan t elevation plan strength of weld in shear strength of base metal = 0.75 x 0.707 x a x lw x.
Source: www.youtube.com
Fy for the plate and anchor bolts is 36 ksi and f’c is 3 ksi. Additionally, the shear strength of the base metal must also be considered: K = 2.0 effective length: Convert brace load into shear and normal forces on this section.normal force will also result in a moment on the section. Strain gages were mounted on the gusset.
Source: communities.bentley.com
Bearing strength of concrete=0.6fck=12n/mm2 area reqd= 2000x10 3=166.7x10 12 length of base plate+ column depth+ 2 cover plate thickness + 2 gusset plate thickness + 2 gusset plate + 2 gusset angle + 2 projections = 450+2(06)+2(16)+2(115)+2(25) Axial load of column = 600 kn. N=14 a n'=12.5 8 60 k It is assumed uniformly distributed under the slab Design of.
Source: graitec.com
The size of the column is ishb450. Bearing strength of concrete=0.6fck=12n/mm2 area reqd= 2000x10 3=166.7x10 12 length of base plate+ column depth+ 2 cover plate thickness + 2 gusset plate thickness + 2 gusset plate + 2 gusset angle + 2 projections = 450+2(06)+2(16)+2(115)+2(25) The bolts are 1.5” from the edge. Design a slab for the column. The service loads.
